Factory Direct HX-2000B Toilet Paper & Lazy Rag Rewinding Line

HX-2000B Toilet Paper And Lazy Rag Rewinding Production Line

Equipment Introduction 1. Adopt PLC programmable control, independent motor drive, the whole machine wall panel. 2. Man-machine conversation, easy operation with high efficiency. Perforating distance and tension control digital operation. 3. Machine stop when raw paper broken, jumbo Roll Paper is pneumatically uploaded onto machine. 4.The rewinding process of the product is tight first and loose afterward, with its tension adjustable. Automatic changing paper roll, rewinding, tail cutting and sealing, then finished log auto unloading. 5. Bearing, electric component and synchronous belt use famous brand.

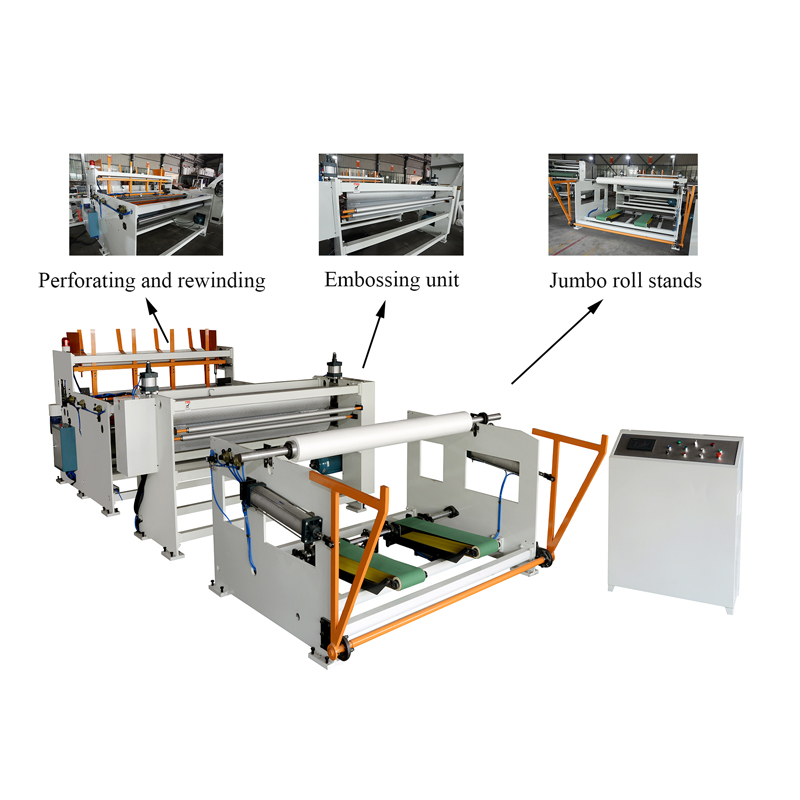

1 Jumbo Roll Stands----1 groups of Embossing unit (Steel to steel)----1 set of compressing Convey Unit-----1 set of perforating Unit----1 set of winding unit ----1 set of Tail trimming

Product Description

Payment & Delivery Payment Method: T/T,Western Union, PayPal Delivery Details: within 75-90 days after confirming the order FOB Port: Xiamen Primary Advantage Small Orders Accepted Country of Origin Experienced Machine International suppliers Product Performance Quality Approvals Service of Technicians We have abundant Experience of producing most kinds of living paper machine device which were customized by customers from different countries and areas, so we can meet varies demand. If you have demand, welcome to contact us and create new values.

Equipment Process

Main Technical Parameter for Toilet paper Roll rewinding machine

1.Actual production speed: 60-80m/min m/min 2. Diameter of Winding: 100-130mm 3. Jumbo roll paper width: 2000mm 4. Jumbo roll paper diameter: 1200mm 5.Perforating distance: 100-250mm 6.Paper roll inner core diameter: 76.2mm 7.Machine weight: about 5 tons (Based on the actual production machine) 8. Machine power: 10.3KW (380 V 50HZ 3PHASE) 9. Machine Overall size(L*W*H) :7200*2650*1900mm (Based on the actual production machine)

Product Video

Main Technical Parameter for Auto Band saw cutting machine

This is automatic band saw machine, for cutting toilet paper and kitchen towel roll. 1. Jumbo roll width: 1500-3000mm (optional) 2. Finished product diameter: 30-130mm 3. Finished product width: 20-500mm 4. Cut head and tail width:10-35mm 5. Cutting speed: Finished product width:80-500mm, diameter140-300mm,cutting speed about 40-80 cuts/min (optional) 6. Total power: 10KW (AC380V-460V 50/60HZ) 7. Weight: about 2500KGS 8. Machine Overall size: 4300mx1500mmx2200mm

Main Technical Parameter for packing machine

1.Power: 380V/50-60HZ/3phase 2.Speed: 24 bag/min 3.Packing height: ≤300mm 4.Packing size: width+height ≤400mm, Unlimited length 5.Film used: POF half folded film 6.Maximum film: 700 mm(W)+280mm(outer diameter) 7.Total power: 1.5 KW 8.Air pressure: ≤ 0.5MPa (5bar) 9.Sealing and cutting system: constant temperature heating system, easy to replace the cutter, sealing and cutting without smoke and odor. The specific technical parameters will vary according to the different packaging materials and packaging requirements, and the technical parameters confirmed by both parties shall prevail.

HX-2000B Toilet Paper And Lazy Rag Rewinding Production Line

Products Details
